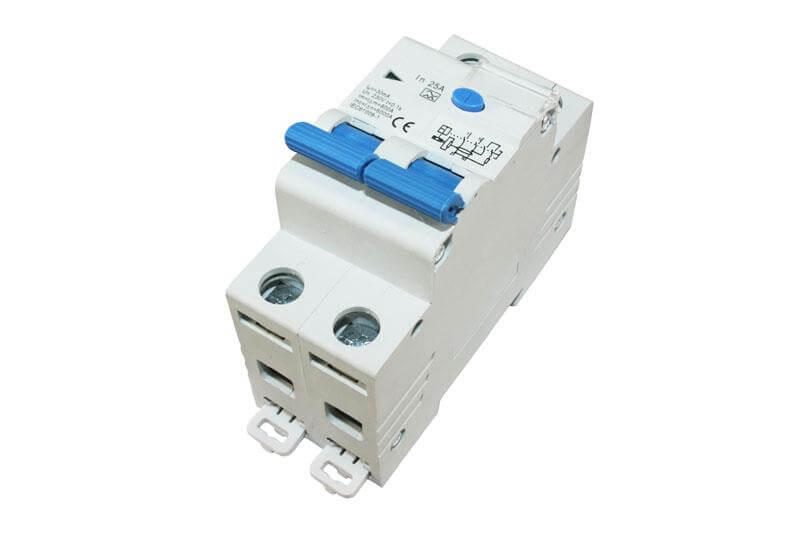

ELCB 30mA earth leakage circuit breaker - without sales packaging
The HABA 30mA differential circuit breaker is an essential piece of equipment for your electrical system:
- Reliable - Ensures safety from electrical faults
- Effective - 30mA sensitivity for optimum protection
- Compact - Perfect for limited spaces in caravans, motorhomes, or boats
- Easy to Install - Hassle-free installation process
- RoHS Compliant - Safe and environmentally friendly
This 30mA differential circuit breaker is a vital component of your electrical system, designed to prevent harm from electric shocks and protect your equipment from damage. It detects small stray voltages on the metal enclosures of electrical equipment, and interrupts the circuit if a dangerous voltage is detected.
The 30mA differential circuit breaker is compact and easy to install, making it a perfect fit for small spaces in caravans, motorhomes, and boats. Despite its small size, it provides reliable and effective protection, with a sensitivity of 30mA for optimum safety. Plus, it's RoHS compliant, meaning it's safe for you and the environment.
Ensure your safety and peace of mind with the HABA 30mA differential circuit breaker. It's a small device with a big impact, providing essential protection for you and your electrical equipment.
| Fusebox size | 2-module |
|---|---|
| Mounting method | snap-on fixing rail 35mm EN50022 |
| Degree of protection component | IP20 |
| Thickness connection cable | 1 - 25 mm² |
| Rated current | 25A |
| Rated voltage | 230 V |
| Frequency | 50/60 Hz |
| Surge current | 6 kA |
| Rated sensitivity | 30 mA |
| Amount of poles | 2 |
| Standard | IEC61008-1 |
| Tripping characteristic | A |
| Mounting method | click into place |
| Width | 35 mm |
| Height | 84 mm |
| Length | 91 mm |
| Net weight | 0.2 g |
| Colour | white |
| Secondary colour | blue |
| Material | ABS |
| Degree of protection | IP21 |
| Certification | CE |
| Sales packaging | white box |
| Sales unit | 1 |
|---|---|
| Width packaging | 8.5 cm |
| Length packaging | 9 cm |
| Height packaging | 4 cm |
| Gross weight | 0.207 kg |
| Quantity per box | 100 |
| Quantity per export carton | 2800 |
| Width export carton | 43 cm |
| Length export carton | 47 cm |
| Height export carton | 18 cm |
| Weight export carton | 21 kg |
| HS code | 8536.3010.90 0,6% |
