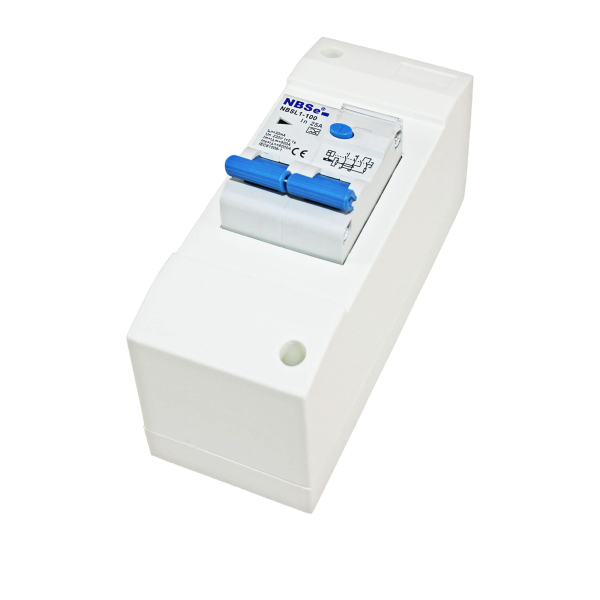

Mains consumer unit 2 way caravan and motorhome with RCB 30mA
The Haba Mains Consumer Unit 2 Way for caravans and motorhomes is an essential accessory for your outdoor adventures. Here are its key features:
- Reliable - Ensures consistent power supply
- Efficient - Features a 30 amp consumer unit fuse
- Safe - Comes with a 30 amp double pole circuit breaker
- Convenient - Easy to install and use
- Durable - Built to last with a robust white casing
This Haba Mains Consumer Unit 2 Way is specifically designed for use in caravans and motorhomes. It is equipped with an ELCB 30mA, ensuring your electrical systems are protected from overloads and short circuits. The unit is easy to install, making it a convenient addition to your camping accessories. Its white casing is not only aesthetically pleasing but also durable, ensuring the unit can withstand the rigours of outdoor use.
With a 30 amp consumer unit fuse and a 30 amp double pole circuit breaker, this unit provides the safety and reliability you need when you're on the road. Don't compromise on safety and efficiency; choose the Haba Mains Consumer Unit 2 Way for your caravan or motorhome today.
| Fusebox size | 2-module |
|---|---|
| Mounting method | snap-on fixing rail 35mm EN50022 |
| Degree of protection component | IP20 |
| Component type 1 | double-pole circuit breaker |
| Rated current | 25A |
| Tripping characteristic | C |
| Thickness connection cable | 1 - 25 mm² |
| Rated voltage | 240 V |
| Frequency | 50/60 Hz |
| Amount of poles | 2 |
| Mounting method | click into place, screw in place |
| Diameter screw hole | 5.5 mm |
| Distance between screw holes length | 110 mm |
| Distance between screw holes width | 35 mm |
| Installation | surface |
| Length | 130 mm |
| Width | 52 mm |
| Height | 84 mm |
| Net weight | 350 g |
| Colour | white |
| Secondary colour | blue |
| Material | ABS |
| Degree of protection | IP20 |
| Certification | CE |
| Sales packaging | colour box |
| Sales unit | 1 |
|---|---|
| Width packaging | 13.5 cm |
| Length packaging | 9 cm |
| Height packaging | 5.5 cm |
| Gross weight | 0.287 kg |
| Quantity per box | 1 |
| Quantity per export carton | 32 |
| Width export carton | 24 cm |
| Length export carton | 29 cm |
| Height export carton | 36.5 cm |
| Weight export carton | 9.528 kg |
