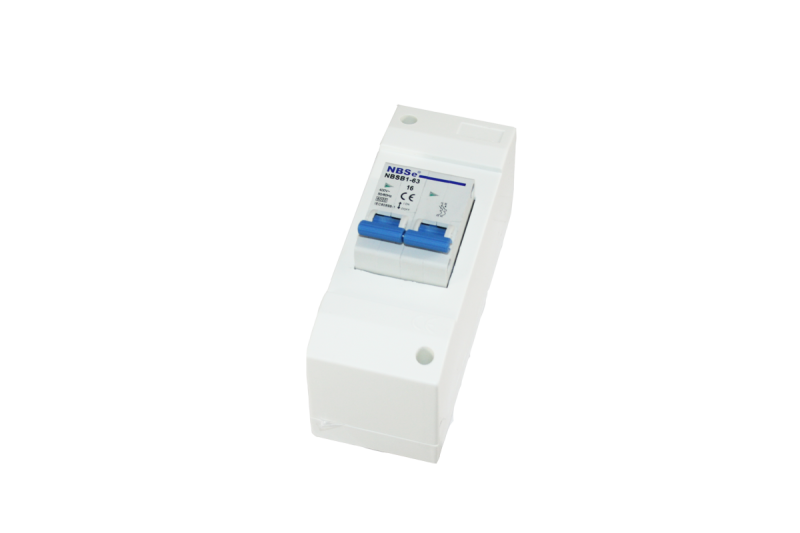

Mains consumer unit 2 way caravan and motorhome with double pole circuit breaker B16A
The Mains Consumer Unit 2 Way Caravan and Motorhome with 16 Amp 2 Pole Circuit Breaker is a reliable and essential addition to your camping gear:
- Reliable – Ensures consistent electrical supply
- Compact – Easily fits into small spaces
- Powerful – 16 Amp double-pole circuit breaker
- Easy to Install – No complex setup required
- Safe – Protects your electrical systems from overload
This consumer unit is a crucial component for your caravan or motorhome, ensuring a safe and consistent supply of electricity. It features a 2-module structure with a double-pole circuit breaker of 16A, offering protection against overloads and short circuits. The unit is compact and easy to install, making it a practical choice for your mobile home or boat. It comes in a neutral white colour, seamlessly blending with your vehicle’s interior.
Double Pole Caravan Consumer Unit. This unit is an excellent choice for those who need a reliable and efficient power management solution for their caravan or motorhome. It ensures that your electrical appliances and systems function safely and effectively, preventing potential damage from power surges or overloads. With its compact design and easy installation, it is a must-have for all your camping adventures.
| Fusebox size | 2-module |
|---|---|
| Mounting method | snap-on fixing rail 35mm EN50022 |
| Degree of protection component | IP20 |
| Component type 1 | double-pole circuit breaker |
| Thickness connection cable | 1 - 25 mm² |
| Rated current | 16A |
| Rated voltage | 400 V |
| Frequency | 50/60 Hz |
| Rated tripping current | 6 A |
| Amount of poles | 2 |
| Standard | IEC60898-1 |
| Tripping characteristic | B |
| Mounting method | click into place, screw in place |
| Diameter screw hole | 5.5 mm |
| Distance between screw holes length | 110 mm |
| Distance between screw holes width | 35 mm |
| Installation | surface |
| Width | 52 mm |
| Height | 84 mm |
| Length | 130 mm |
| Net weight | 280 g |
| Colour | white |
| Secondary colour | blue |
| Material | ABS |
| Degree of protection | IP20 |
| Certification | CE |
| Sales packaging | blister |
| Sales unit | 1 |
|---|---|
| Width packaging | 13.3 cm |
| Length packaging | 25 cm |
| Height packaging | 7.2 cm |
| Gross weight | 0.332 kg |
| Quantity per box | 1 |
| Quantity per export carton | 40 |
| Width export carton | 39.3 cm |
| Length export carton | 58.5 cm |
| Height export carton | 38.3 cm |
