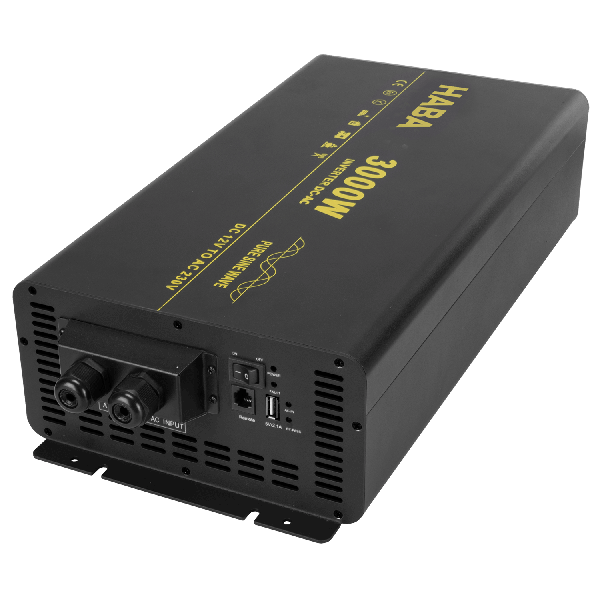

Pure Sine Wave inverter 12V-230V - 3000W with AC priority
Article number
4403465
ean
8715133045034
Regular Price
€849.00
In stock
Our advanced inverter effortlessly converts 12V DC power into a reliable 230V AC source, so you will never be without power, even in the most remote locations. With a robust capacity of up to 3000W, this inverter is perfect for devices that demand high power.
Experience the seamless transition between power sources.
Once your vehicle or vessel is connected to the grid, our inverter automatically switches to AC power, ensuring continuous operation without manual intervention. The inverter is equipped with a 5V DC 2.1A USB output and a connection for a control panel.
A control panel can be connected to the pure sine wave inverter (sold separately - Art. 4403445), with which the inverter can be switched on and off from a distance.
It also displays the data from the inverter, the connected battery and the connected device.
| Nominal input voltage | 230 +/- 10% V AC |
|---|---|
| Nominal input voltage | 12 V DC |
| Output voltage | 230 +/- 10% V AC |
| Output power | 3000W |
| Output peak power | 6000 W |
| Efficiency | >85% % |
| Inverter type | Zuivere sinus omvormer |
| Change-over function | AC prioriteit |
| Change-over time | ,0.2 s |
| No-load current consumption | <1.2 A |
| Alarm at low voltage | 10.5 +/- 0.5 V DC |
| Shutdown at low voltage | 10 +/- 0.5 V DC |
| Alarm at high voltage | 15.3 +/- 0.5 V DC |
| Shutdown at high voltage | 15.5 +/- 0.5 V DC |
| Shutdown at over load | 3100 +/- 100 W |
| Reverse polarity protection | Mosfet |
| Thermal shutdown | 75 °C |
| Noise level | 75 dB |
| Cables included | 100cm 230V ingangskabel, 100cm aardekabel, 60cm battery cable, red and black, 25mm² |
| Battery connection | M8+M10 |
| Remote control | No |
| USB socket | USB-A 5V DC 2.1A |
| Mounting method | screw in place |
| Diameter screw hole | 5 mm |
| Distance between screw holes length | 139 mm |
| Distance between screw holes width | 401 mm |
| Installation | surface |
| Width | 220 mm |
| Height | 115 mm |
| Length | 435 mm |
| Net weight | 8.2 g |
| Colour | black |
| Material | metal |
| Degree of protection | IP21 |
| Certification | CE |
| Sales packaging | colour box |
| Sales unit | 1 |
|---|---|
| Width packaging | 30.5 cm |
| Length packaging | 52 cm |
| Height packaging | 20.5 cm |
| Gross weight | 8 kg |
| Quantity per box | 1 |
| Quantity per export carton | 1 |
| Width export carton | 32.5 cm |
| Length export carton | 54 cm |
| Height export carton | 23 cm |
| Weight export carton | 9 kg |
| HS code | 8504 40 85 90 - 0.0% |
