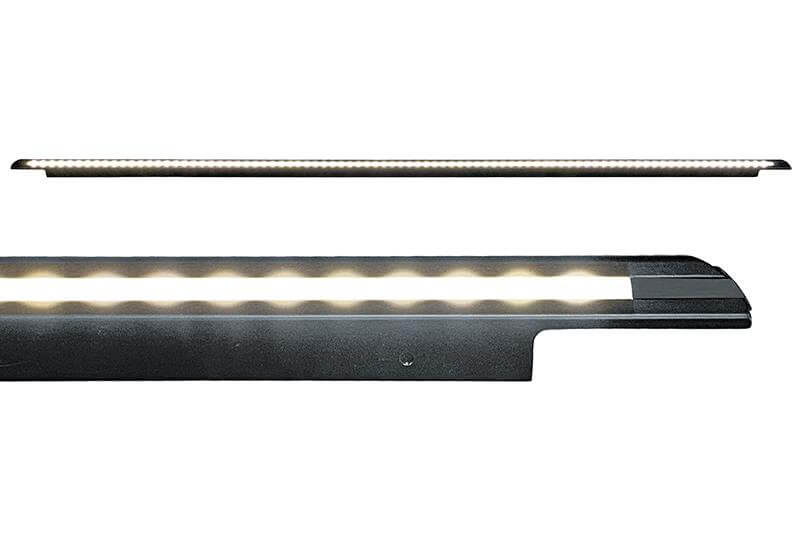

Viganella 135 door light and rain gutter motorhome Ducato/Boxer/Jumper/Master/Movano/NV400 - ECE R10
The Viganella 135 door light and rain gutter is a must-have addition to your motorhome, offering a combination of practicality and convenience:
- High Brightness - Ensures optimal illumination at the entrance of your motorhome
- Dual Functionality - Acts as a light source and a rain gutter
- Watertight Connection - For safe and secure wiring
- Energy Efficient - Consumes only 7W of power
- Easy Installation - Designed for various motorhome types including Ducato, Boxer, Jumper, Master, Movano, and NV400
The Viganella 135 door light and rain gutter is specially designed for motorhomes like Fiat Ducato, Peugeot Boxer, Citroën Jumper, Renault Master, Opel Movano, and Nissan NV400. This high-brightness awning light also functions as a rain gutter, preventing rain from entering through the sliding doors and directing it from the roof to the sides when the doors are open. With a watertight connection for wiring, it ensures safety and convenience.
Featuring a camper rain gutter, this product is made from sturdy aluminium, has a length of 1500mm, and operates on a 12V DC connection. With a power consumption of 0.58A and energy consumption of 7W, it's an energy-efficient choice. It also boasts a safety feature of IP44 and a light intensity of 225 lumens. The light colour temperature is 4000K, and the light source is LED, offering a diffused lighting effect with no visible LED points. This standard model variant is also dimmable, allowing you to adjust the light intensity to your preference.
| Connection voltage | 12 V DC |
|---|---|
| Electric current | 0.58 A |
| Power consumption | 7 W |
| Length connection cable | 1500 mm |
| Polarity sensitive | yes |
| Luminous flux | 225 lm |
| Light colour | 4000 K |
| External driver necessary | No |
| Dimmable by product | No |
| Length stripped connection cable | 5 mm |
| Stabilized | no |
| External dimmable | yes |
| Mounting method | plakken |
| Type of cover | frosted glass |
| Type of light source | SMD |
| Light beam angle | 130 ° |
| Energy label | G |
| Length | 1500 mm |
| Width | 12 mm |
| Height | 34.5 mm |
| Net weight | 440 g |
| Colour | black |
| Secondary colour | white |
| Material | aluminium |
| Degree of protection | IP44 |
| Certification | CE, ECE R10 |
| Mounting method | screw in place, stick |
| Diameter screw hole | 3 mm |
| Distance between screw holes length | 325 mm |
| Installation | surface |
| Sales packaging | box with full colour sticker |
| Sales unit | 1 |
|---|---|
| Gross weight | 0.658 kg |
| Quantity per box | 1 |
| Quantity per export carton | 20 |
| Width export carton | 26.5 cm |
| Length export carton | 154.5 cm |
| Height export carton | 21 cm |
