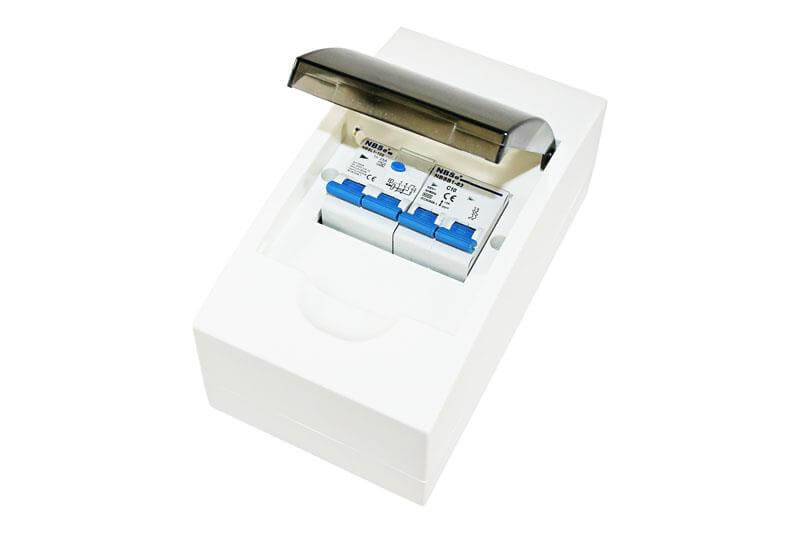

Fusebox 4 way consumer unit with 2 pole circuit breaker B10A and RCB 30mA
Article number
4601513
ean
8715133003478
Regular Price
€57.50
In stock
The HABA Fusebox 4 Way Consumer Unit provides several features and benefits:
- Reliable - Ensures consistent power distribution
- Compact - Fits into small spaces
- Powerful - Comes with a 2 pole circuit breaker 10A
- Safe - Includes an ELCB 30mA for safety
- Easy to install - Simplified design for easy installation
The HABA Fusebox 4 Way Consumer Unit is the perfect modular fuse box for managing the electrical system in your caravan or boat. Its compact size makes it easy to install in tight spaces, while its robust construction ensures it can withstand the rigours of travel. With a 2 pole circuit breaker 10A and an ELCB 30mA, this unit ensures safe and efficient power distribution. The blue colour adds a touch of style to your electrical setup.
Installing a fuse box in your caravan or motorhome is essential for managing your electrical system and ensuring safety. The HABA Fusebox 4 Way Consumer Unit is the perfect solution, providing reliable power distribution and added safety features. Its compact size and powerful specifications make it a must-have for any caravan or boat owner.
| Fusebox size | 4-module |
|---|---|
| Mounting method | snap-on fixing rail 35mm EN50022 |
| Degree of protection component | IP20 |
| Component type 1 | double-pole circuit breaker |
| Rated current | 10A |
| Tripping characteristic | B |
| Breaking capacity | 6 kA |
| Standard | IEC60898-1 |
| Component type 2 | ELCB |
| Rated current | 25A |
| Residual current | 30mA |
| RCD type | A |
| Standard | IEC61008-1 |
| Thickness connection cable | 1 - 25 mm² |
| Rated voltage | 230 V |
| Frequency | 50/60 Hz |
| Amount of poles | 2 |
| Normal operating temperature | -25 - 70 ° C |
| Storage temperature | -40 - 85 °C |
| Maximum operating height | 3500 m |
| Mounting method | screw in place |
| Diameter screw hole | 6 mm |
| Distance between screw holes length | 140 mm |
| Distance between screw holes width | 50.5 mm |
| Installation | surface |
| Length | 198 mm |
| Width | 110 mm |
| Height | 75 mm |
| Net weight | 750 g |
| Colour | white |
| Material | ABS |
| Degree of protection | IP21 |
| Certification | CE |
| Sales packaging | colour box |
| Quantity per package | 1 |
| Brand | HABA |
|---|---|
| Sales unit | 1 |
| Quantity per box | 1 |
