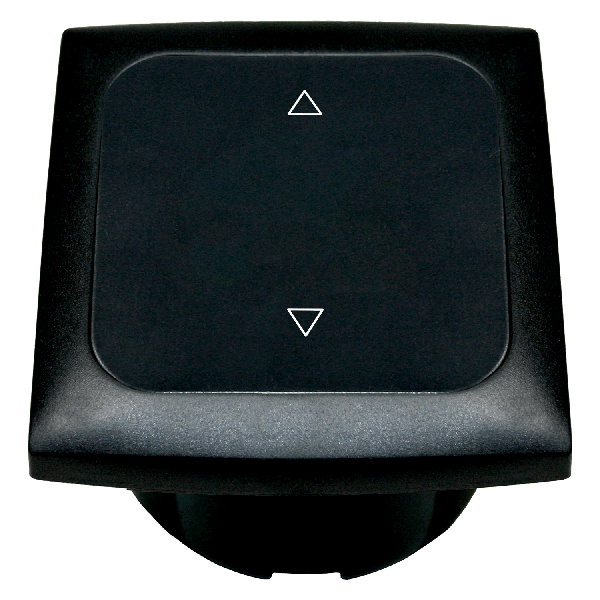

C-Line motorhome electric step switch with Opal faceplate black - without sales packaging
The Opal motorhome electric step switch with faceplate black is a specialised product designed for the retractable step in motorhomes and caravans. Here are some of its key features:
- Easy Operation - Simple press and hold mechanism for extending and retracting the step.
- Seamless Integration - Can be neatly integrated into the interior using a single or double cover frame.
- No Extra Electronics - All functionality is built into this switch, no need for additional electronics.
- Part of C-line Range - This switch is part of the extensive C-line product range.
- Customisable - Can be combined with other switching materials by choosing a multiple frame.
The Opal motorhome electric step switch with faceplate black is a stand-alone switch that is designed to make the operation of the retractable step in your motorhome or caravan easy and convenient. It has a simple press and hold mechanism for extending and retracting the step, and can be neatly integrated into the interior of your vehicle using a single or double cover frame. This switch is part of the extensive C-line product range, and can be combined with other switching materials by choosing a multiple frame.
Must contain h2 SEO keyword. The Opal motorhome electric step switch with faceplate black is a great addition to your caravan switches and sockets. It is easy to install, reliable, and designed to last. It is the perfect solution for those looking for a high-quality motorhome light switch.
| Switch type | SPDT (single pole double throw switch) |
|---|---|
| Maximum connection capacity | 480 W |
| Maximum connection current | 16 A |
| Connection voltage | 10 - 30 V DC |
| Mounting method | screw in place |
| Diameter screw hole | 35 mm |
| Distance between screw holes length | 46 mm |
| Distance between screw holes width | 46 mm |
| Installation | built-in |
| Length recessed | 46 mm |
| Diameter recessed | 50 mm |
| Width above surface | 60 mm |
| Length above surface | 63 mm |
| Height above surface | 14 mm |
| Length | 60 mm |
| Width | 63 mm |
| Height | 58.5 mm |
| Net weight | 42 g |
| Colour | black |
| Material | plastic |
| Certification | CE |
| Sales packaging | without packaging |
| Sales unit | 1 |
|---|---|
| Width packaging | 15 cm |
| Length packaging | 20 cm |
| Height packaging | 5.5 cm |
| Gross weight | 0.044 kg |
| Quantity per export carton | 40 |
| Width export carton | 24 cm |
| Length export carton | 29.5 cm |
| Height export carton | 37 cm |
| HS code | 8536.6990.99 - 2,3% |
