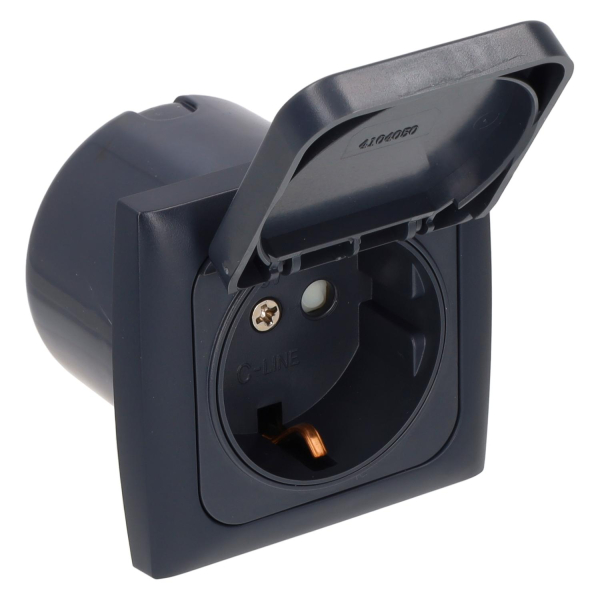

C-Line socket 230V with coverflap and Opal faceplate anthracite
Article number
4101450H
ean
8715133132345
Regular Price
€14.95
Currently not available. Please pre-order now.
- Complete 230V socket set
- Protective cover flap
- Integrated child safety shutters
- Installation box included
- Stylish anthracite finish
The C-Line Schuko socket with coverflap and Opal frame anthracite + iso box - packed provides a complete 230V power connection for caravans, motorhomes and boats. The socket, Opal cover frame and installation box are supplied together, making it a practical solution for creating a safe and neatly finished electrical connection.
A protective cover flap shields the socket while it is not in use. The integrated child safety shutters help prevent direct access to the electrical contacts, providing additional protection inside the vehicle. The supplied installation box supports a secure and tidy installation.
The anthracite Opal frame provides a stylish, neutral finish that suits a wide range of caravan and motorhome interiors. It can be combined with other anthracite HABA C-Line and Opal components to create a consistent appearance throughout the vehicle.
| FAQs | Which 230V Schuko wall socket is suitable for a caravan or motorhome?The C-Line Schuko socket with Opal frame anthracite provides a complete 230V power connection designed for caravans, motorhomes and boats. It is supplied with a protective cover flap, integrated child safety shutters and an installation box for a safe and neatly finished result.How is the C-Line Schuko socket installed?The socket is secured by screwing it in place, and the supplied installation box supports a tidy and secure mounting. The complete set includes the socket, Opal cover frame and installation box, so all essential components are included for installation.What are the electrical specifications of the C-Line Schuko socket?The socket is rated at 230V and 16A with a frequency range of 50-60 Hz. It has a protection rating of IP21 and features an anthracite Opal frame that can be combined with other HABA C-Line and Opal components in the same finish. |
|---|---|
| Socket type | Schuko |
| Maximum connection voltage | 250 V AC |
| Maximum current | 16 A |
| Safety | kinderbeveiliging, klapdeksel |
| Wire thickness to be connected | 0.5 - 2.5mm² |
| Connection voltage | 230 V AC |
| Electric current | 16 A |
| Frequency | 50-60Hz |
| Mounting method | screw in place |
| Diameter screw hole | 3 mm |
| Distance between screw holes length | 46 mm |
| Distance between screw holes width | 46 mm |
| Installation | built-in |
| Width | 60 mm |
| Height | 60 mm |
| Length | 50 mm |
| Colour | anthracite |
| Material | plastic |
| Degree of protection | IP21 |
| Certification | EN50291 |
| Sales packaging | blister |
| Quantity per package | 1 |
| Brand | HABA |
|---|---|
| Sales unit | 1 |
