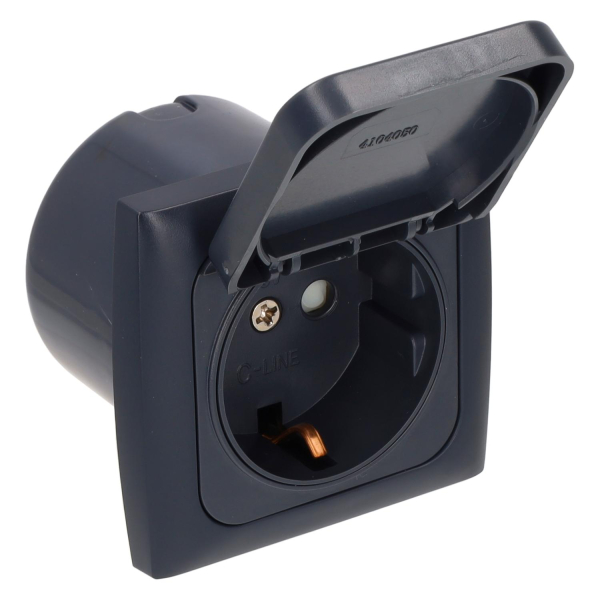

C-Line socket 230V with coverflap and Opal faceplate anthracite - without sales packaging
Article number
4101450
ean
8715133132338
Regular Price
€13.75
- Complete 230V socket set
- Protective cover flap
- Integrated child safety shutters
- Installation box included
- Stylish anthracite finish
Available in stores from early 2027
The C-Line Schuko socket with coverflap and Opal frame anthracite + iso box provides a complete 230V power connection for caravans, motorhomes and boats. The socket, Opal cover frame and installation box are supplied together, making it a practical solution for creating a safe and neatly finished electrical connection.
A protective cover flap shields the socket while it is not in use. The integrated child safety shutters help prevent direct access to the electrical contacts, providing additional protection inside the vehicle. The supplied installation box supports a secure and tidy installation.
The anthracite Opal frame provides a stylish, neutral finish that suits a wide range of caravan and motorhome interiors. It can be combined with other anthracite HABA C-Line and Opal components to create a consistent appearance throughout the vehicle.
| Socket type | Schuko |
|---|---|
| Maximum connection voltage | 250 V AC |
| Maximum current | 16 A |
| Safety | kinderbeveiliging, klapdeksel |
| Wire thickness to be connected | 0.5 - 2.5mm² |
| Connection voltage | 230 V AC |
| Electric current | 16 A |
| Frequency | 50-60Hz |
| Mounting method | screw in place |
| Diameter screw hole | 3 mm |
| Distance between screw holes length | 46 mm |
| Distance between screw holes width | 46 mm |
| Installation | built-in |
| Width | 60 mm |
| Height | 60 mm |
| Length | 50 mm |
| Colour | anthracite |
| Material | plastic |
| Degree of protection | IP21 |
| Certification | EN50291 |
| Sales packaging | without packaging |
| Quantity per package | 1 |
| Sales unit | 1 |
|---|---|
