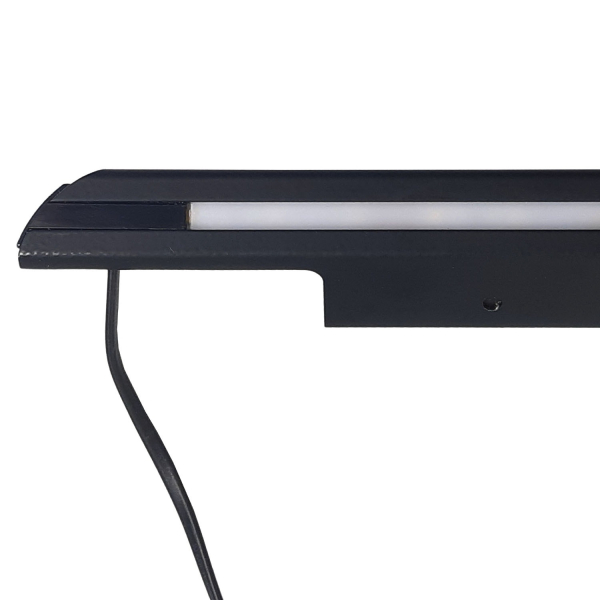

Viganella 180 COB LED door light and rain gutter bus camper Crafter/MAN/Sprinter - ECE R10
Article number
4302534
ean
8715133044457
Regular Price
€69.95
In stock
- Powerful 340-lumen COB LED lighting
- Warm white light at 4000K
- Integrated rain gutter
- Dimmable with an external PWM dimmer
- Suitable for the Crafter, MAN and Sprinter
The Viganella 180 COB LED combines powerful outdoor lighting with a practical rain gutter for campervans with a wide sliding door. The COB LED light delivers 340 lumens with a warm white light colour of 3000K and, thanks to the frosted glass, ensures an even distribution of light around the entrance. The integrated rain gutter helps to channel rainwater away along the sides of the door opening. The light operates on 12V, is externally dimmable using a PWM dimmer and is suitable for the Volkswagen Crafter, MAN and Mercedes Sprinter.
| Luminous flux | 340 lm |
|---|---|
| Light colour | 3000 K |
| External driver necessary | no |
| Length stripped connection cable | 5 mm |
| Stabilized | no |
| External dimmable | yes, with PWM dimmer |
| Mounting method | screw in place, stick |
| Type of cover | frosted glass |
| Type of light source | COB LED |
| Light beam angle | 130 ° |
| Switch type | non |
| Energy label | G |
| Connection voltage | 12 V DC |
| Electric current | 1 A |
| Power consumption | 12 W |
| Length connection cable | 2000 mm |
| Polarity sensitive | yes |
| Mounting method | screw in place, stick |
| Diameter screw hole | 3 mm |
| Installation | surface |
| Length | 1500 mm |
| Width | 7 mm |
| Height | 36.5 mm |
| Net weight | 440 g |
| Colour | black |
| Material | aluminium |
| Degree of protection | IP44 |
| Certification | CE, ECE R10 |
| Sales packaging | box with full colour sticker |
| Sales unit | 1 |
|---|---|
| Quantity per box | 1 |
| Quantity per export carton | 20 |
| HS code | 9405 11 90 90- 2.7% |
| Log in to view this information |
| User manual | View the user manual |
|---|
Which outdoor light is suitable for a campervan with a wide sliding door?
The Viganella 180 COB LED door light is designed for campervans with a wide sliding door and is suitable for the Volkswagen Crafter, MAN and Mercedes Sprinter. Its COB LED delivers 340 lumens, and the frosted glass spreads the light evenly around the entrance.How is the Viganella 180 door light mounted and dimmed?
The Viganella 180 door light can be screwed in place or stuck on, and it operates on 12V. The light can be dimmed using an external PWM dimmer, so you can adjust the brightness to suit the situation.What does the integrated rain gutter on the Viganella 180 door light do?
The integrated rain gutter helps to channel rainwater away along the sides of the door opening. The black door light has an IP44 rating.The shops listed below have HABA products in stock. Please call the shop in question to enquire whether the desired product is in stock.
