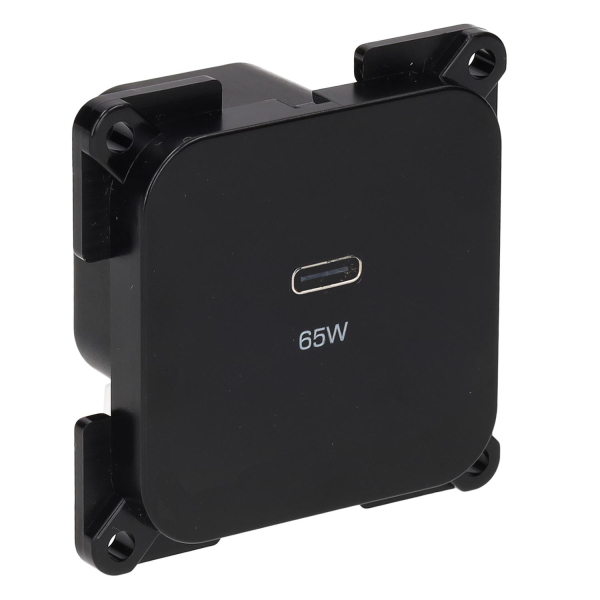

C-Line USB-C charging socket 65W
- Powerful 65W USB-C charging
- Power Delivery technology
- Suitable for compatible laptops
- Designed for 12V systems
- Fits C-Line and Opal frames
The C-Line USB-C charging socket 65W is a powerful built-in USB charging socket for caravans, motorhomes and trucks with a compatible 12V electrical system. Unlike standard low-power USB sockets, it provides enough output to charge not only phones and tablets but also compatible USB-C laptops.
Power Delivery technology communicates with the connected device and supplies a suitable charging output up to 65W. This enables fast and efficient charging while travelling, without needing to use a separate 230V laptop charger or inverter for compatible devices.
The charger has a sleek black finish and can be combined with other C-Line components and a compatible Opal cover frame. Once installed, it provides a permanent USB-C charging point that fits neatly into a modern caravan, campervan or motorhome interior.
| Connection voltage | 12 V DC |
|---|---|
| Electric current | 5.4 A |
| Power consumption | 65 W |
| Polarity sensitive | yes |
| Socket type | USB |
| Wire thickness to be connected | 0.5 - 2.5mm² |
| USB type | USB-C |
| Amount of USB charging ports | 1 |
| Charging technology | PD |
| Maximum charging power USB-C | 65 W |
| Suitable for charging | laptop, mobile phone, tablet |
| Length | 37 mm |
| Width | 53 mm |
| Height | 53 mm |
| Net weight | 38 g |
| Colour | black |
| Material | ABS |
| Degree of protection | IP20 |
| Mounting method | building in |
| Diameter screw hole | 3.5 mm |
| Distance between screw holes length | 46 mm |
| Distance between screw holes width | 46 mm |
| Installation | built-in |
| Sales packaging | without packaging |
| Quantity per package | 1 |
| Sales unit | 1 |
|---|---|
| Quantity per box | 20 |
| Quantity per export carton | 240 |
| HS code | 8536 69 90 99 - 2,3% |
